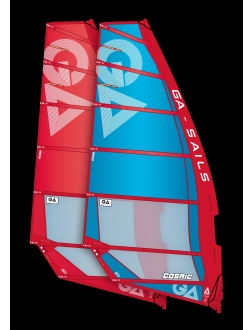

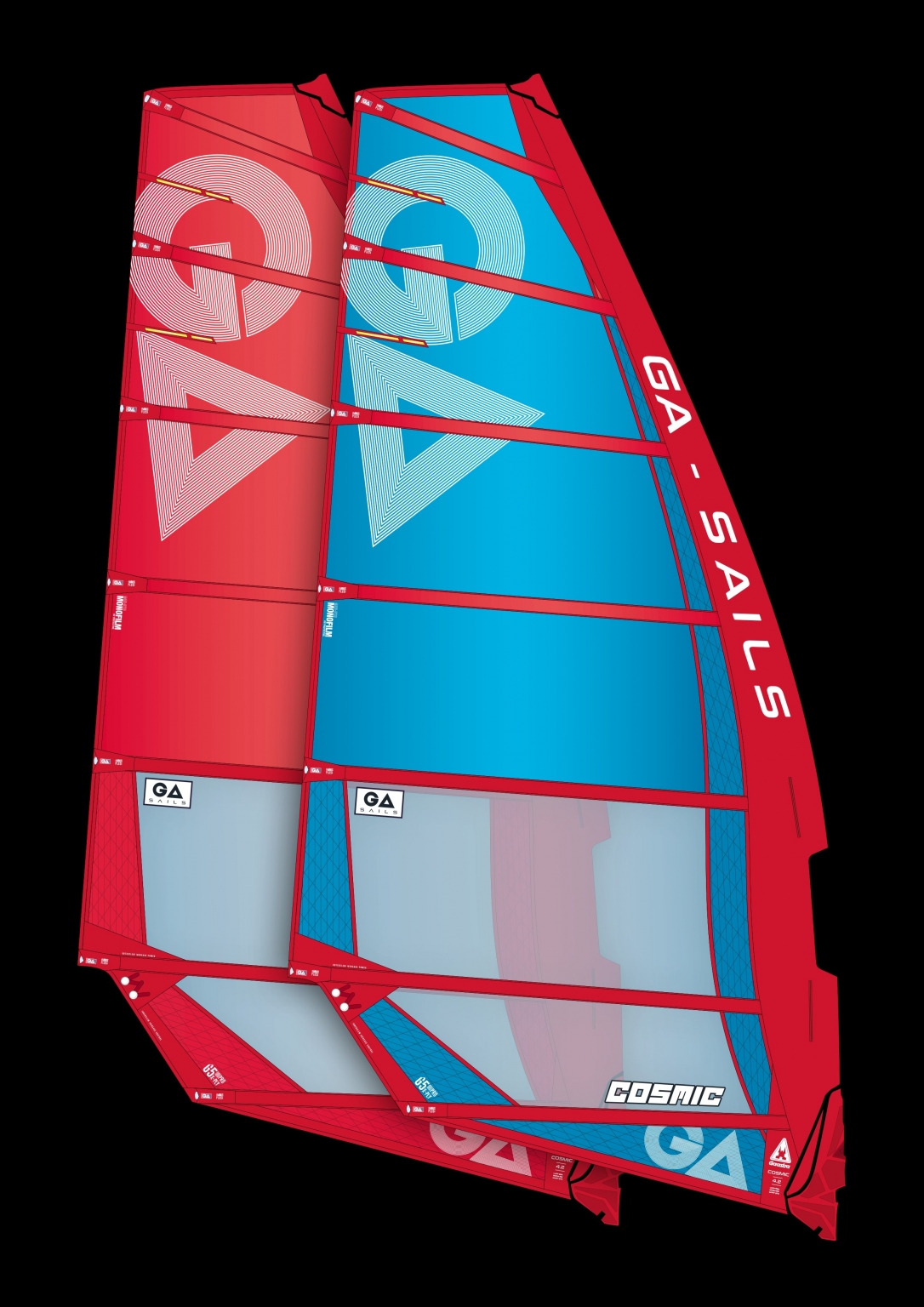

COSMIC
TWO CAMS FREERACE
The Cosmic combines the low-end power and performance of a cambered sail with the user-friendliness and comfort in jibes, usually only no-cam designs can provide.
All sizes feature seven battens and two smoothly rotating small cams, which form a powerful profile that enables you to start planing incredibly early and in extremely light winds.
The race-oriented outline with a wide sail foot and continuous luff panels provide precise load distribution and overall performance in a huge wind range.
While the Cosmic sparks your urge to go faster more than ever before, it is still extremely convenient to rig and the rotation of the battens during jibes will fascinate you.
If you look for increased performance, but don’t want to pass on user-friendliness, the Cosmic is the perfect sail to accelerate your windsurfing session.

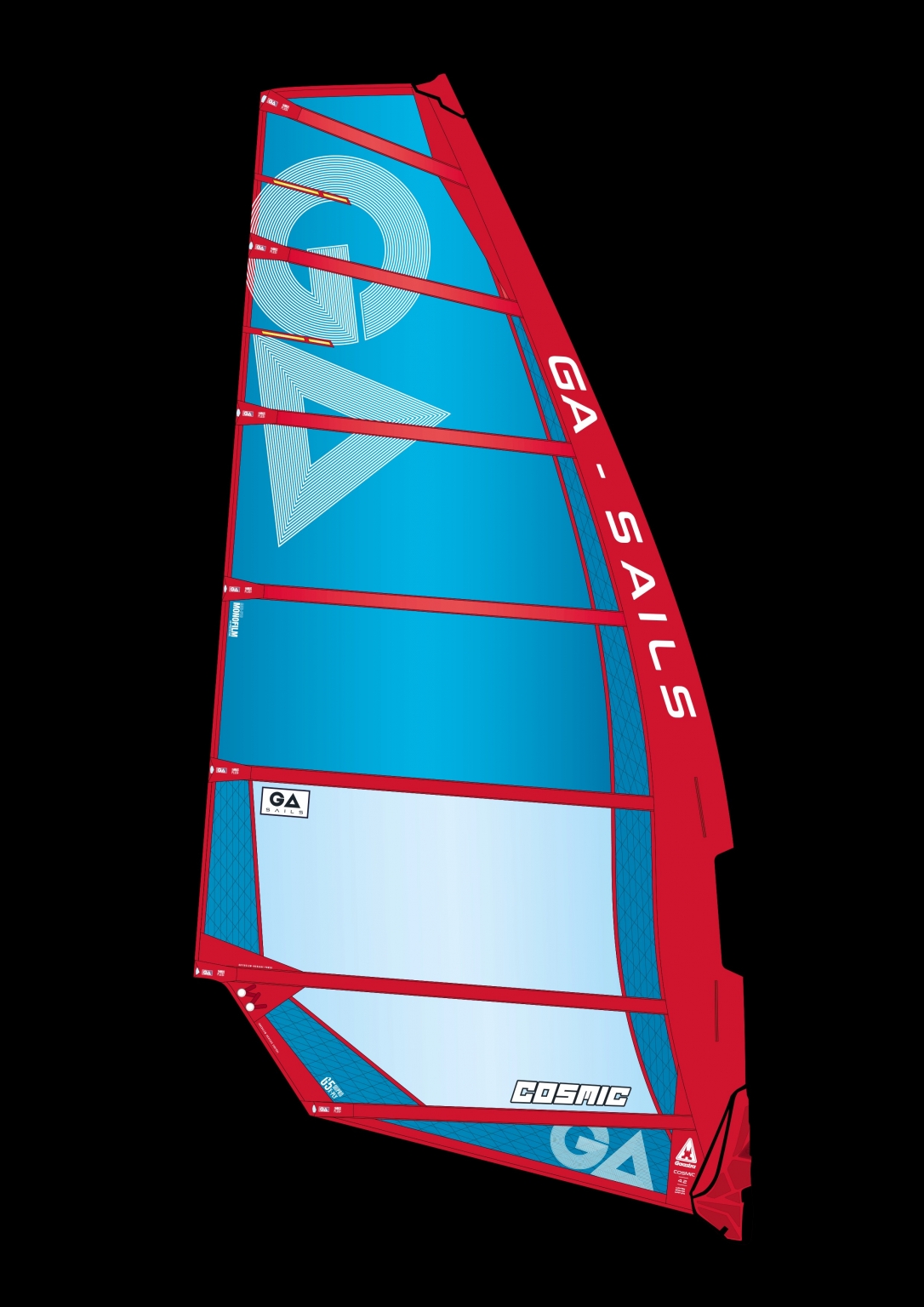

COLOR: C1

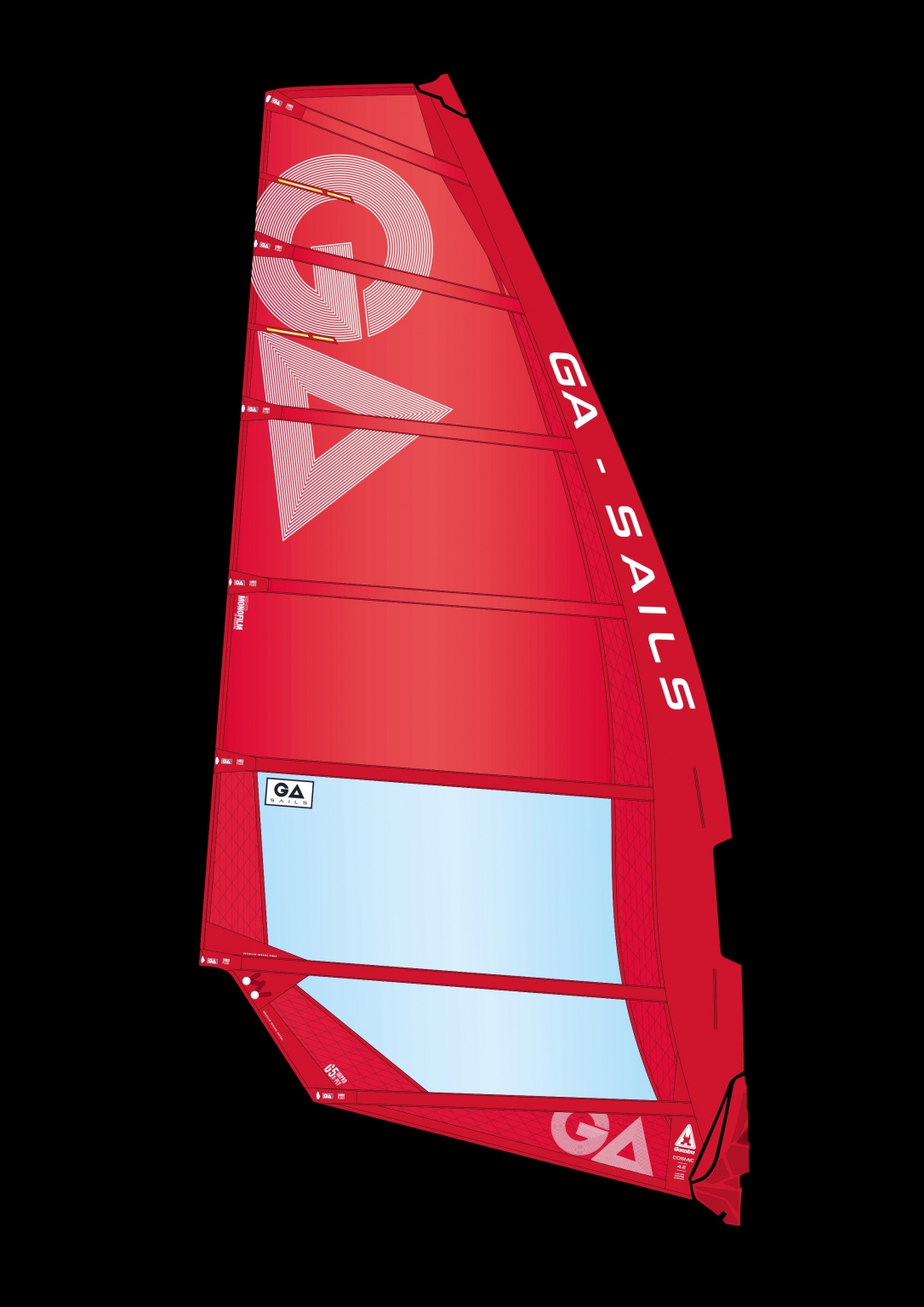

COLOR: C2
TECH SPECS
| LUFF | BOOM | MAST | IMCS | BASE | BATTENS | TOP | CAMS | DIAMETER | WEIGHT | |
|---|---|---|---|---|---|---|---|---|---|---|
| Cosmic 6.2 | 441 | 183 | 430 | 21 | 12 | 7 | Fixed | 2 | SDM | 4.6 |
| Cosmic 6.7 | 458 | 191 | 430 | 21 | 28 | 7 | Fixed | 2 | SDM | 4.8 |
| Cosmic 7.2 | 473 | 199 | 460 | 25 | 14 | 7 | Fixed | 2 | SDM | 4.9 |
| Cosmic 7.7 | 485 | 207 | 460 | 25 | 26 | 7 | Fixed | 2 | SDM | 5.1 |
| Cosmic 8.3 | 499 | 217 | 490-460 | 29/25 | 10-40 | 7 | Fixed | 2 | SDM | 5.3 |
| Cosmic 9.0 | 514 | 229 | 490 | 29 | 24 | 7 | Fixed | 2 | SDM | 5.6 |
Current technical specifications! All rights reserved to improve / modify / change any product at anytime.
SAIL FEATURES
Our goal is to provide every surfer with the perfect sail for his or her demands, which is why we implement the right materials and features for each application area. Depending on the sail model we use the suitable combination of different materials of highest quality to achieve the perfect mix of lightness, durability, power and handling. Quality, advanced technology and innovation means everything to us and each step in the development process is extensively planned to offer unique windsurfing performance.
DUAL-MINI-CAM PERFORMANCE DESIGN
Performance of a race-oriented sail paired with two small cambers for ease of use and smooth batten rotation.
MODERATE TENSION PROFILE
Moderate tension already leads to the perfect trim, which makes rigging of the Matrix extremely convenient.
CROSS BATTEN CONCEPT
The cross batten provides perfect stability in the profile of the Cosmic and a fixed centre of pressure.
C-FILM
To get the best possible colour for the longest possible time, we have invested heavily in our film over the past season. The result
is outstanding colour that won´t fade no matter what you do to it.season. The result is outstanding colour that won´t fade no matter what you do to it.
X-PLY
The best in the business and the best for us. We have been working closely with dimension to ensure we have the toughest sails on the market including our top of the line 4MIL X-Ply which is lighter and stronger than ever before.
CONTINUOUS LUFF PANELS
Two continuous luff panels ensure a strong and efficient load distribution.
DACRON LUFF PANEL
A Dacron panel next to the mast sleeve allows the Matrix to power up smoothly.
COMPACT WINDOW DESIGN
A more compact sail window provides great visibility, while eliminating unnecessary seams and interferences with other materials.
INTEGRATED BATTEN TECHNOLOGY
All battens above the boom are integrated into the overlapping panels for maximized symmetry and stability.
Double Seam
This heavy duty reinforcement area through the windows on the wave sails gives solid durability at these critical areas.
Clew Area
Our refined clew patch provides the ultimate in strength and durability. It also protects the stitching with the new styling features.
Reinforcement Batten Pocket
Light and durable reinforced area, to help protect against all types of wear and tear!
Rollup Leash
Quick, easy elasticated system that keeps sails roll up nice and tidy. Perfect when storage space is at a premium.
Rollup Leash
Quick, easy elasticated system that keeps sails roll up nice and tidy. Perfect when storage space is at a premium.
Vario Top
The GA Vario top will not slip. Designed for maximum performance the GA vario top is easy to use and strong enough for the PWA. With set and forget system that means you only have to adjust it once.
Vario Pocket
A simple pocket on the top of the luff sleeve allows to to store away any excess webbing from your Vario Strap. No more flapping Vario Tops in the GA Sails range.
Vario Protection
This little add-on for the top cap on the Vario Tops protects the adjustable webbing from breaking down from wear and tear on rough ground.
Tack Fairing
A redesign that makes the fold flow much easier. It is clean and just how it needs to be: Perfection!
