GA Foils

Mach 1 Carbon Foil Windsurf Set - GA

$3,599.00

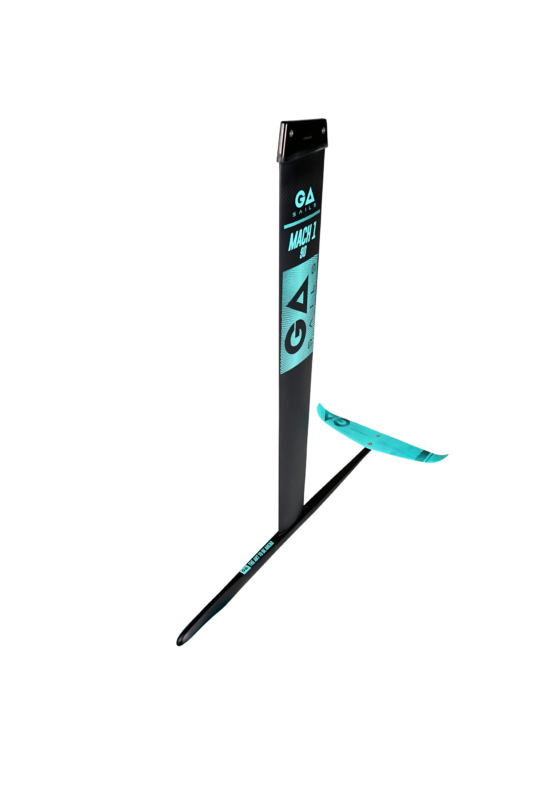

Mach1 Foil

Windsurf Foil – Set

 Lift your foiling to the next level with the premium Mach1 Windsurf Foil Set. If you are looking for prime performance, agility and a top-class construction in one package, the Mach1 is the right choice for you. An incredibly stiff and light 90cm carbon mast is pre-set with an integrated Deep Tuttle adapter for enhanced rigidity at the connection point to your board. The 90cm CNC milled aluminium fuselage offers a great mix of stability, controllability and speed potential as well as compatibility with various front wings. No matter if you’re looking for maximum speed, lift or comfort, you can adjust the foil with a large assortment of tuning parts to achieve exactly the right setup for your demands and the conditions you’re foiling in.

TECH FEATURES

ADAPTABLE MODULAR DESIGN

Each Foil Set from the GA Foils collection can be adjusted to your demands thanks to the wide range of interchangeable spare parts. This allows you to tune your basic set for different conditions, riding styles and skill levels without having to replace the complete foil. Just change the front wing, fuselage, mast or box adapter according to your requirements and enjoy the new characteristics of your foil.

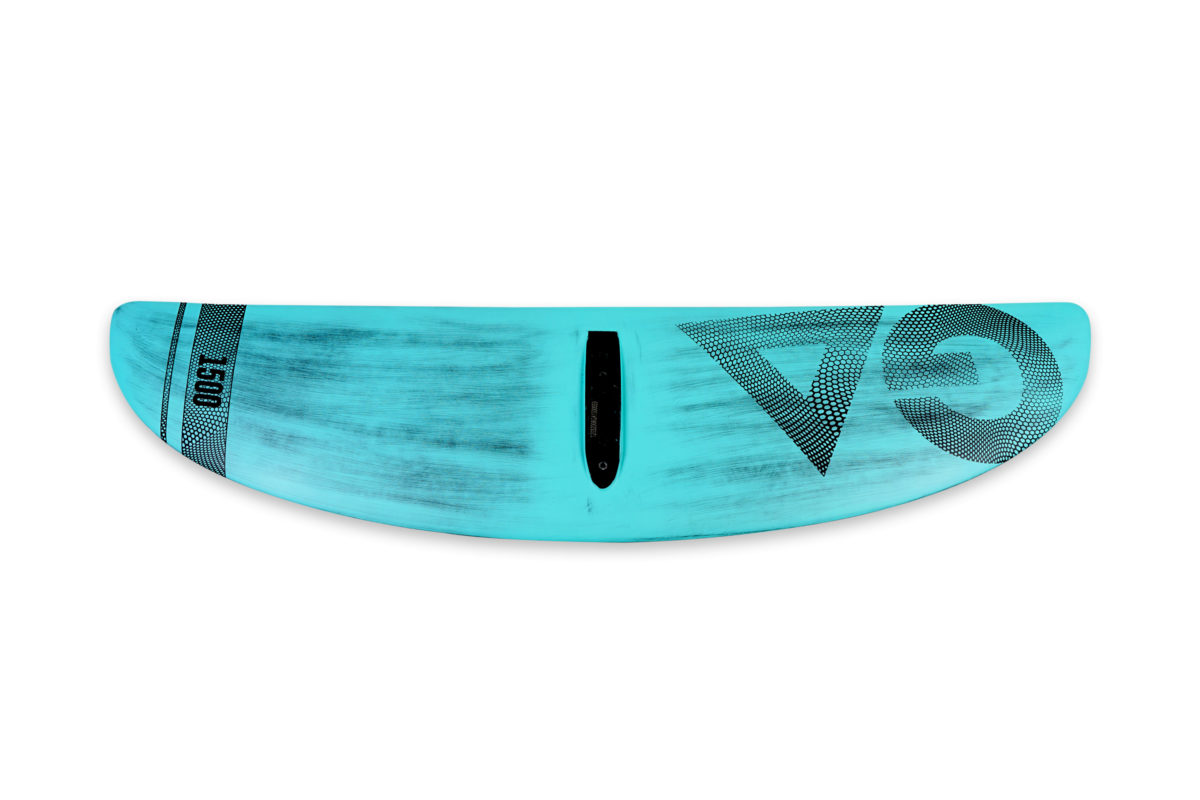

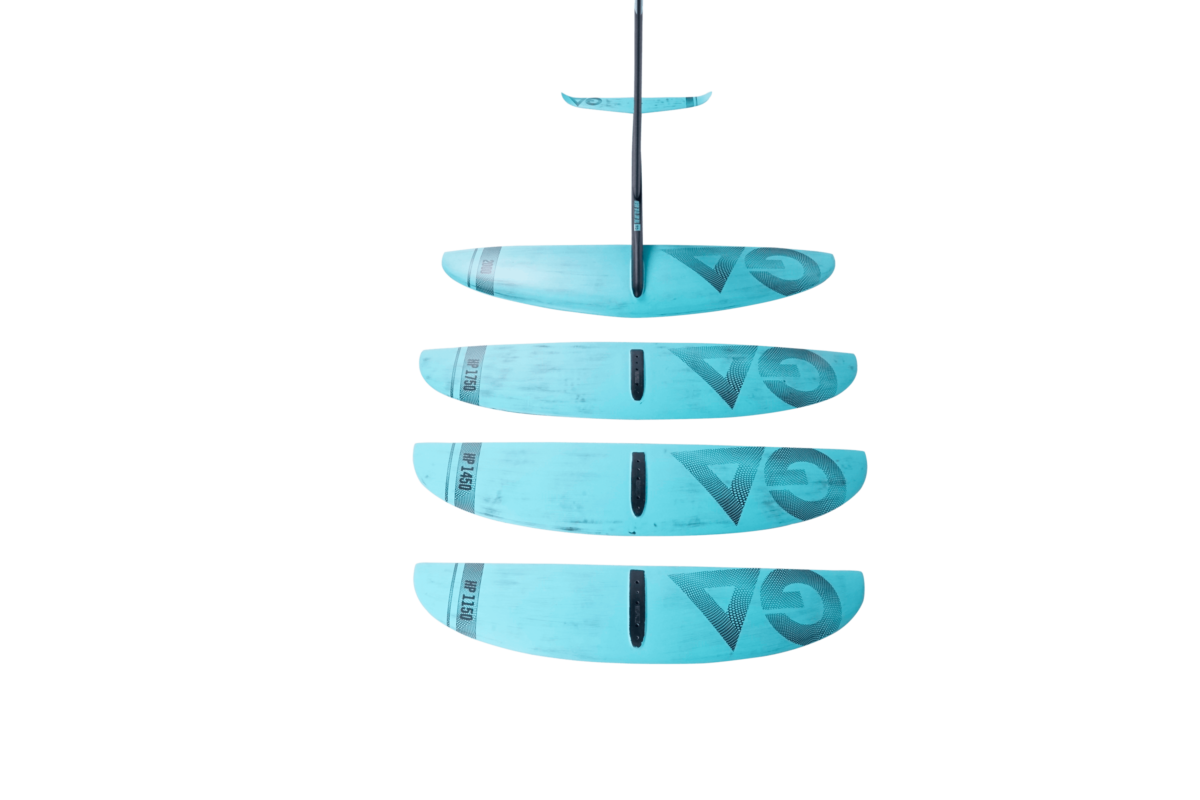

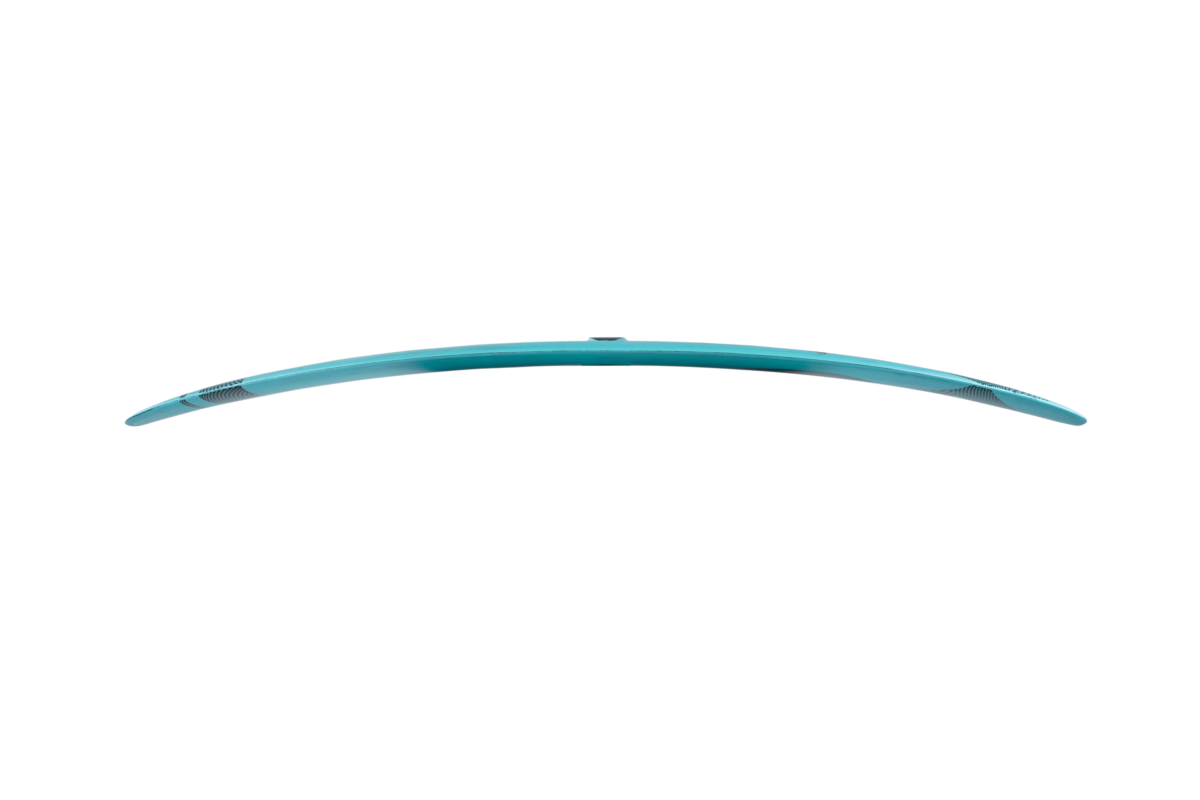

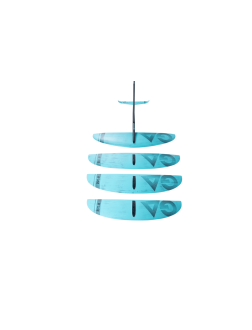

CHANGEBALE FRONT WINGS

A wide range of different front wings provides riders of different skill levels and weights with exactly the right setup for various conditions. The FREE front wings in 2500cm², 2000cm², 1500cm², 1200cm² and 900cm² impress with a fine mixture of comfort, performance and lift, while the HP front wings in 1750cm², 1450cm², 1150cm² and 1050cm² aim at highest performance and speed with their higher aspect ratio. All FREE and HP front wings are compatible both with the Mach 1 and the Hybrid Foil Set.



Also compatible with front wings from the GA Phantom Foil.

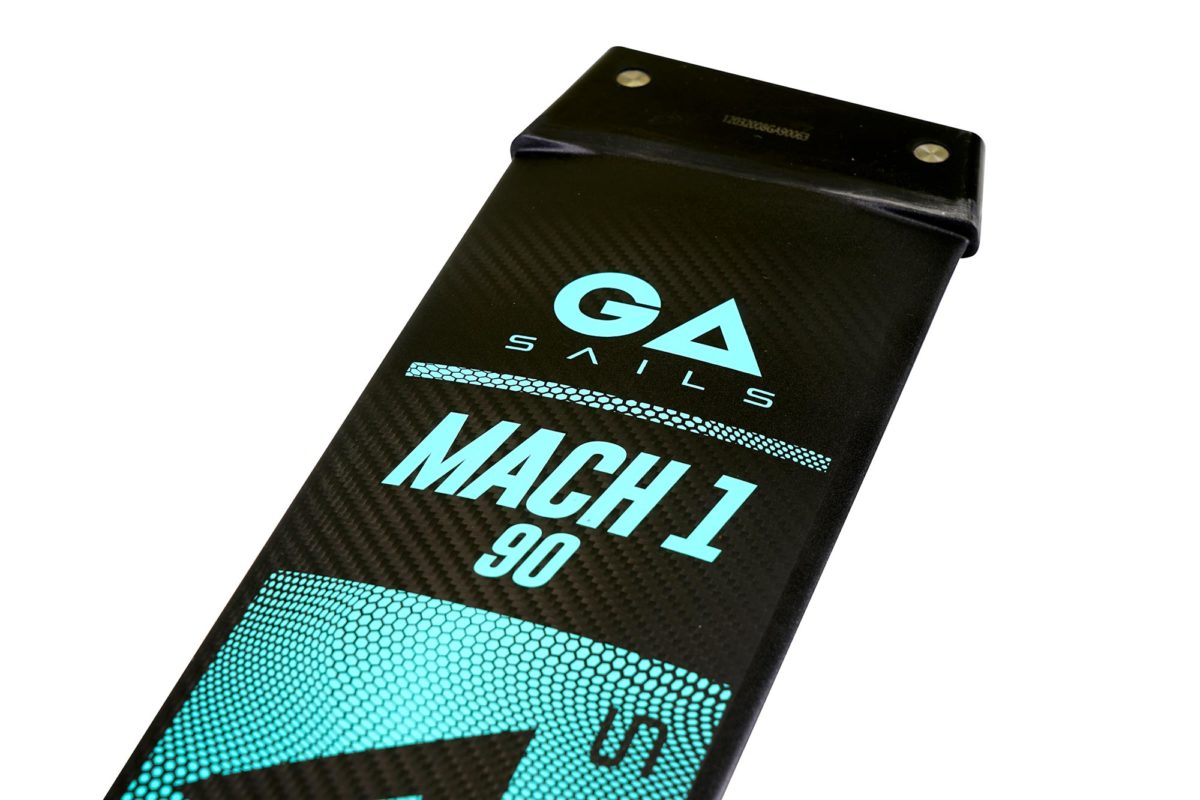

INTEGRATED ADAPTER

Fin box adapters are integrated into the Mach 1 masts, which leads to outstanding stiffness of the whole foil setup. The Wing Foil Set features a Double US Plate and the Windsurf Foil Set a Deep Tuttle adapter.

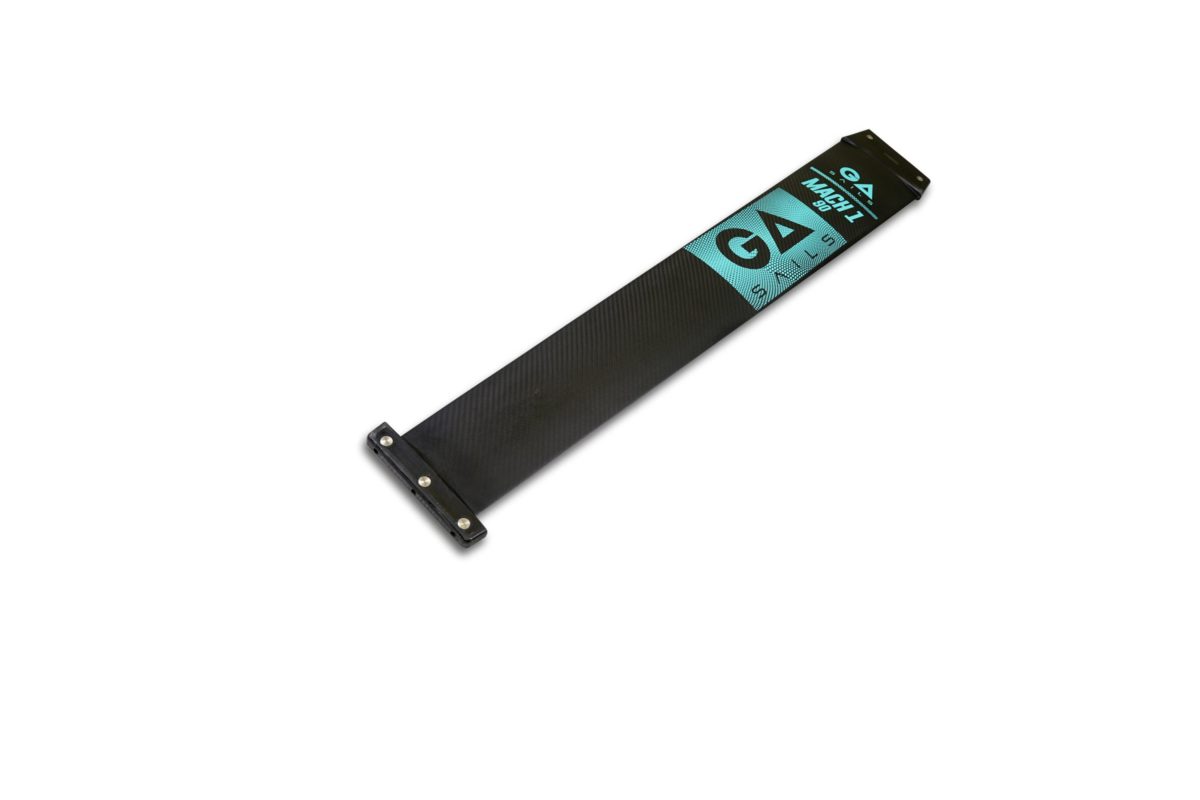

MACH1 CARBON MAST

The 90cm Mach 1 mast is made of prepreg high modulus carbon fiber of the highest quality to ensure performance and durability. Its incredible stiffness provides superb control and feeling for the foil setup.

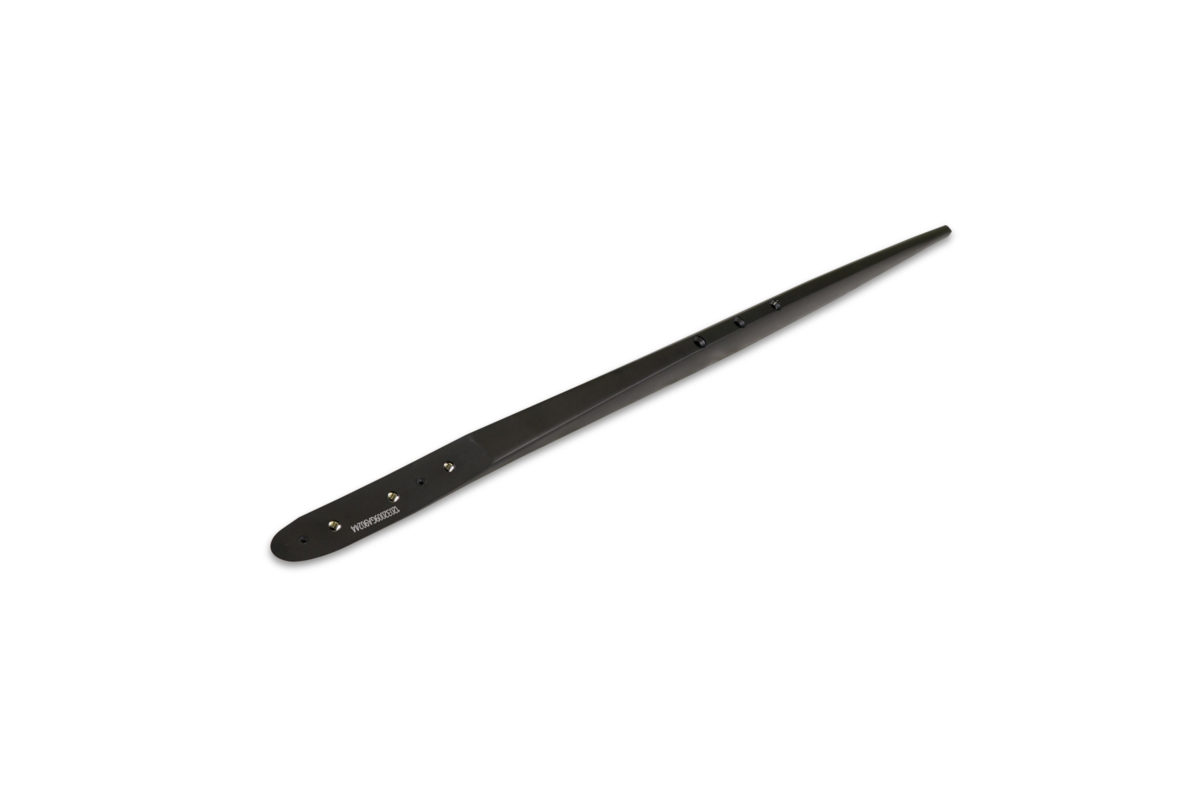

MACH1 ALUMINIUM FUSELAGE

The CNC milled aluminium fuselage of the Mach 1 provides a solid connection to the compatible carbon masts and is available in 72cm, 82cm, 85cm and 90cm. With the 90cm fuselage the Mach 1 Foil is perfectly suited for foiling with a windsurfing sail. The 85cm version makes the first steps into wingfoiling extremely easy and offers comfort and stability, while the 72cm aims at highest agility for pumping and manouevre-oriented wingfoiling.

TECH SPECS

Current technical specifications! All rights reserved to improve / modify / change any product at anytime.
Estimated Weights. Weights are given (+) plus or (-) minus 5%. This makes allowance for possible pre-production differences.

FRONT WING FINDER - WINDSURFING

Choosing the right front wing is key to the performance of your foil setup. Choose between different High Performance (HP), Freeride (FR) and Phantom Slalom (SL) front wings depending on your weight, skill level and the wind range.

MODELAREA
(CM²)
PROJ. AREA
(CM²)
SPAN
(CM)
ARVOLUME
(CM³)
WET SURFACE
(CM²)
HP 1050 1050 1050 76.4 5.6p 1138 2185
HP 1150 1150 1225 82.4 5.6p 1419 2533
HP 1450 1450 1521 92 5.6p 1964 3141
HP 1750 1750 1721 97.5 5.6p 2347 3545

FREE 900 928 911 71 5,4p 1088 1889
FREE 1200 1201 1177 75 4.7p 1390 2401
FREE 1500 1494 1485 84 4.7p 1937 3027
FREE 2000 2024 1999 98 4.745p 3571 4126
FREE 2500 2432 2400 112 5.000p 4503 4952

REAR WING 303 298 293 44 6.5p 187 609
REAR WING 330 330 316.6 44.7 6.5p 208.8 662

Current technical specifications! All rights reserved to improve / modify / change any product at anytime.
