GA Foils

Hybrid Aluminium Foil Windsurf Set - GA

$1,895.00

Hybrid Foil

Windsurf Foil – Set (comes with a 1500 front wing, but this can be changed if required, please enquire)

 The Hybrid Foil with Deep Tuttle adapter offers all-round performance and the freedom to customize the foil according to your individual requirements. A smooth and extremely early take-off, control in the air and a lot of performance potential provide both novices and advanced foil riders with the right setup for their flight. The 90cm CNC milled aluminium fuselage which comes with the set offers a great mix of stability, controllability and speed potential as well as compatibility with various front wings. Depending on your setup the Hybrid Windsurf Foil Set allows you to cruise in almost non-existent winds, but also to race in extremely high-wind conditions. The 85cm aluminium mast with incredible lightness and rigidity makes the Hybrid Foil a cost-efficient foil set with enormous performance potential.

TECH FEATURES

ADAPTABLE MODULAR DESIGN

Each Foil Set from the GA Foils collection can be adjusted to your demands thanks to the wide range of interchangeable spare parts. This allows you to tune your basic set for different conditions, riding styles and skill levels without having to replace the complete foil. Just change the front wing, fuselage, mast or box adapter according to your requirements and enjoy the new characteristics of your foil.

CHANGEBALE FRONT WINGS

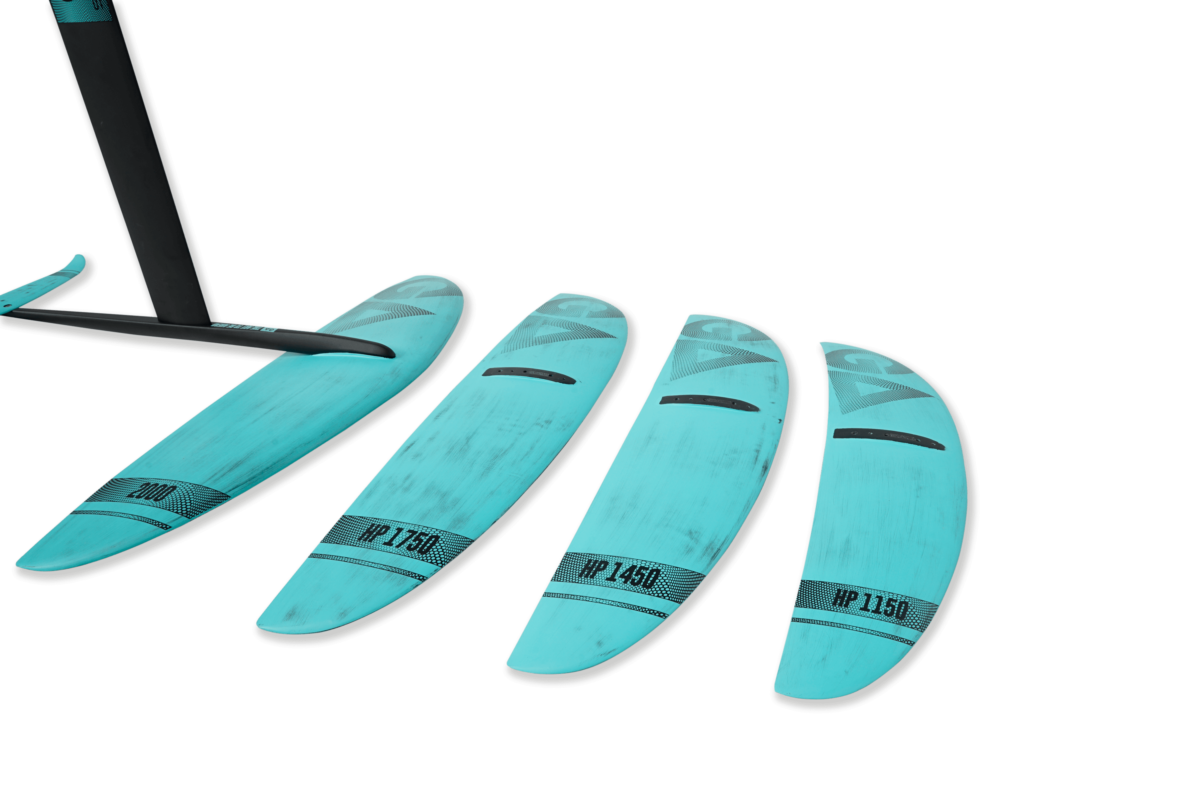

A wide range of different front wings provides riders of different skill levels and weights with exactly the right setup for various conditions. The FREE front wings in 2500cm², 2000cm², 1500cm², 1200cm² and 900cm² impress with a fine mixture of comfort, performance and lift, while the HP front wings in 1750cm², 1450cm², 1150cm² and 1050cm² aim at highest performance and speed with their higher aspect ratio.

All FREE and HP front wings are compatible both with the Hybrid and the Mach 1 Foil Set.

HYBRID ALUMINIUM ADAPTER

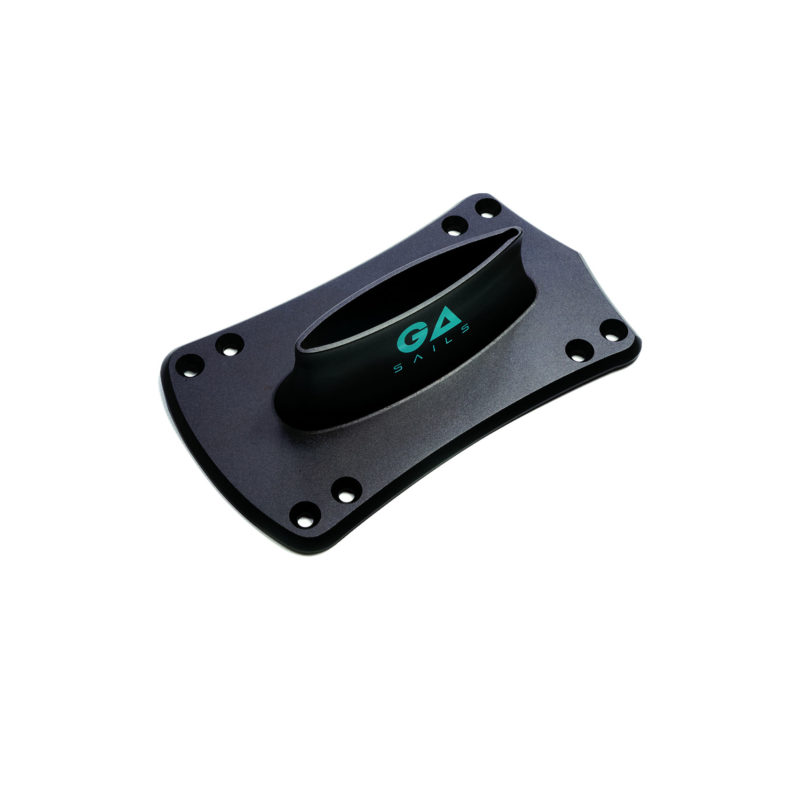

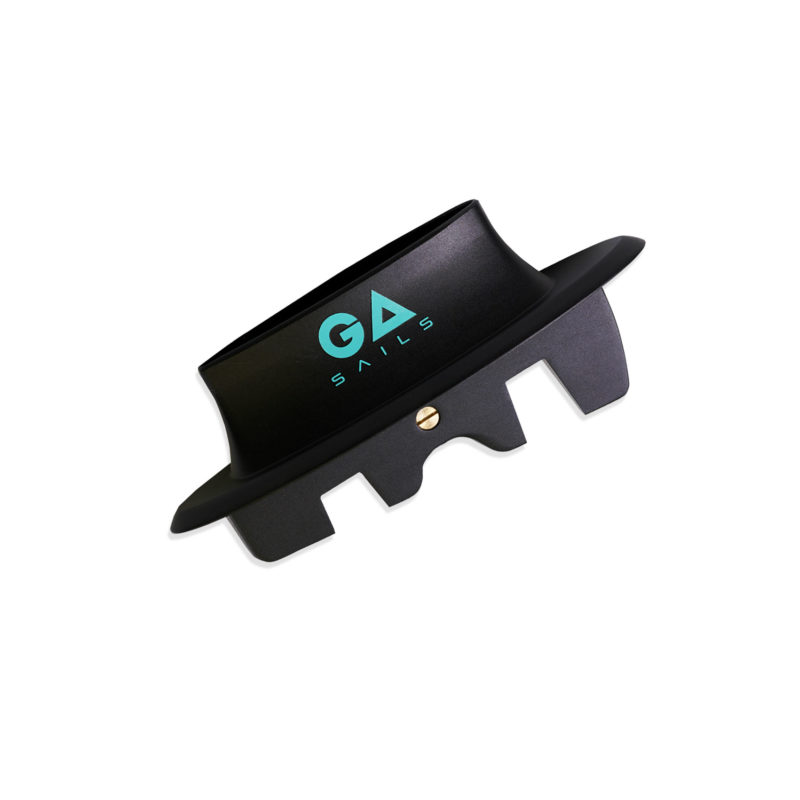

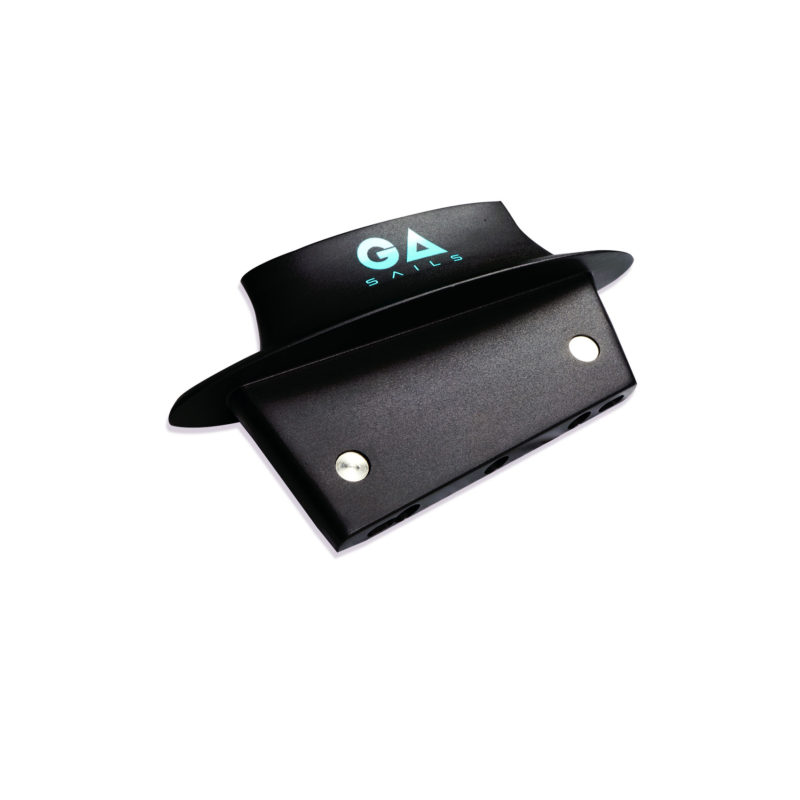

The Foil comes with the Deep Tuttle Fin box as standard but you can purchase adapters for a  Powerbox or Double US Plate as they are compatible with the Hybrid aluminium mast, which allows you to use the foil in different boards and foiling disciplines.

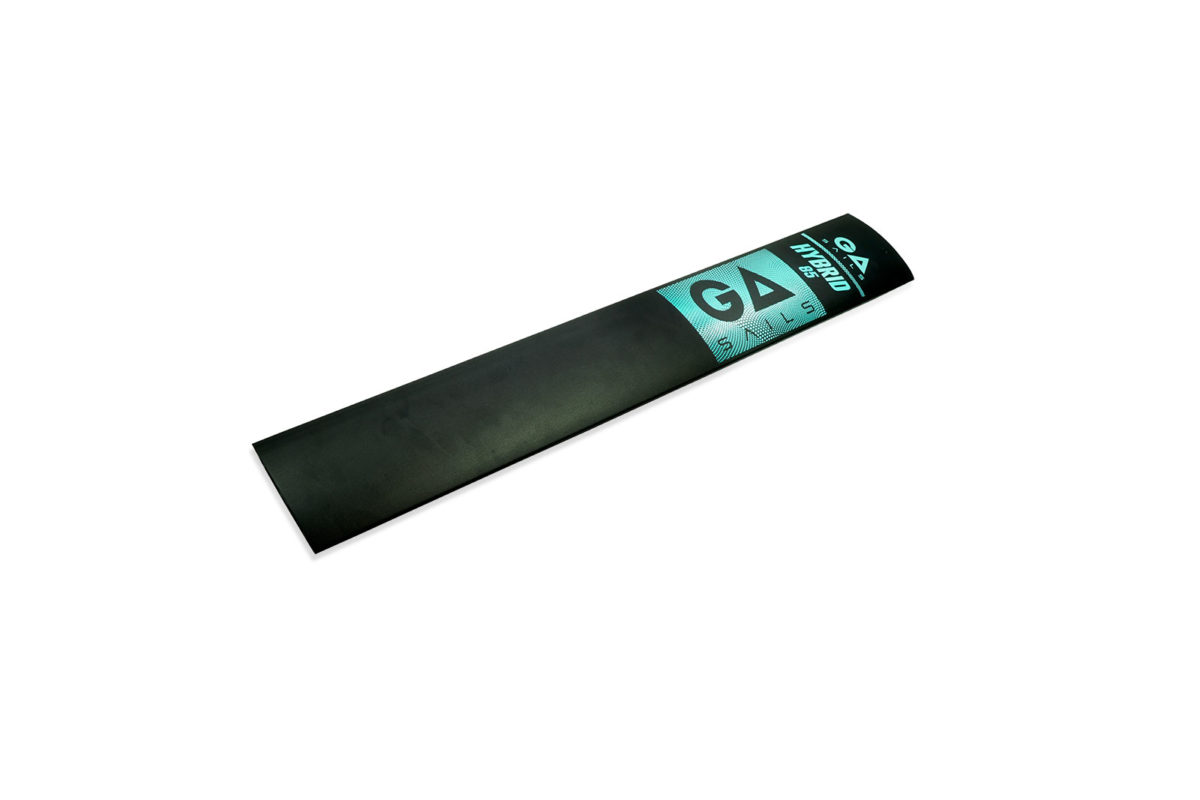

HYBRID ALUMINIUM MAST

The basic Hybrid Set up comes with a 85cm aluminium mast but you can purchase additional mast sizes of 65cm, a 75cm or a 95cm version, depending on your preferences and the spot you are foiling at. All Hybrid masts provide a great mix of stiffness, lightness, strength and cost-efficiency.

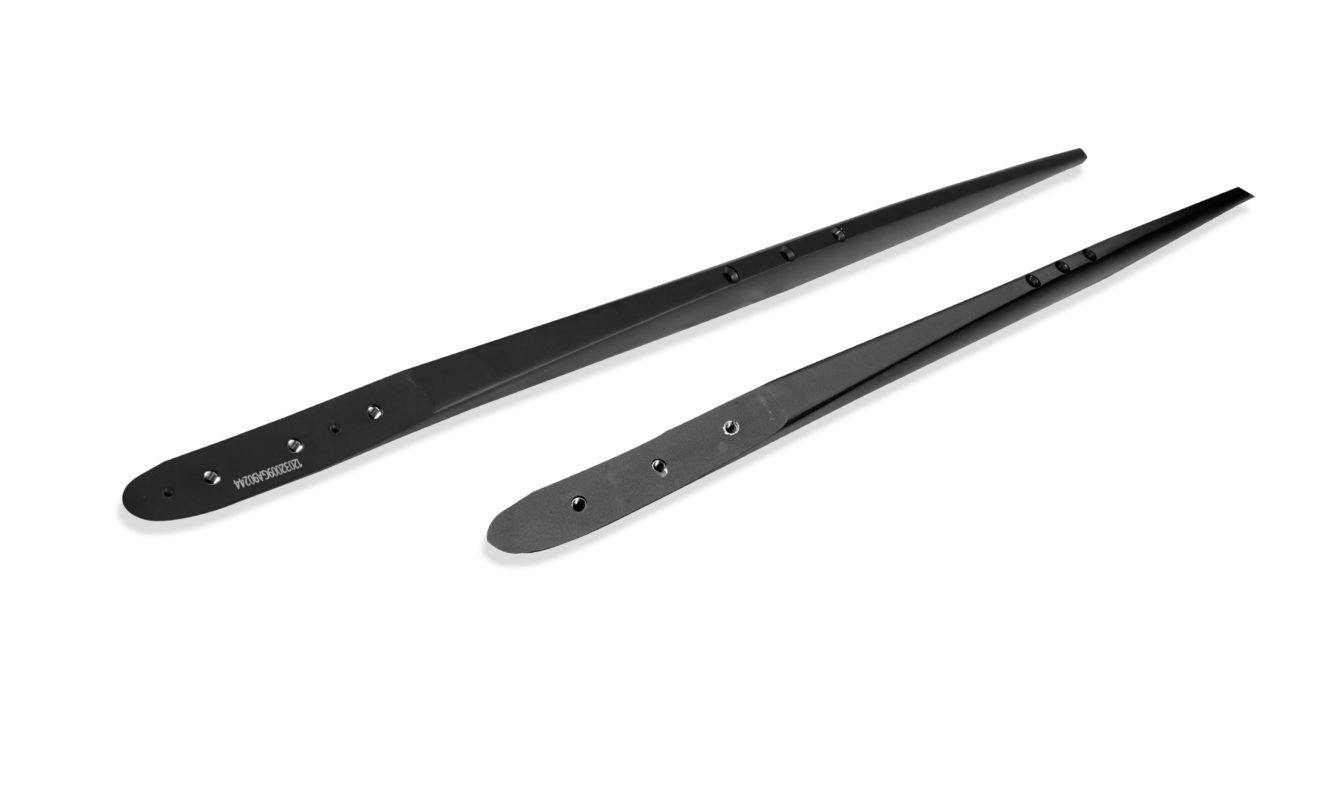

ALUMINIUM FUSELAGE

The CNC milled aluminium fuselage of the Hybrid provides a solid connection to the compatible aluminium masts and is available in 72cm, 82cm, 85cm and 90cm. With the 90cm fuselage the Hybrid Foil is perfectly suited for foiling with a windsurfing sail. The 85cm version makes the first steps into wingfoiling extremely easy and offers comfort and stability, while the 72cm aims at highest agility for pumping and manouevre-oriented wingfoiling.



TECH SPECS

Current technical specifications! All rights reserved to improve / modify / change any product at anytime.
Estimated Weights. Weights are given (+) plus or (-) minus 5%. This makes allowance for possible pre-production differences.

FRONT WING FINDER - WINDSURFING

Choosing the right front wing is key to the performance of your foil setup. Choose between different High Performance (HP), Freeride (FR) and Phantom Slalom (SL) front wings depending on your weight, skill level and the wind range.

MODELAREA
(CM²)
PROJ. AREA
(CM²)
SPAN
(CM)
ARVOLUME
(CM³)
WET SURFACE
(CM²)
HP 1050 1050 1050 76.4 5.6p 1138 2185
HP 1150 1150 1225 82.4 5.6p 1419 2533
HP 1450 1450 1521 92 5.6p 1964 3141
HP 1750 1750 1721 97.5 5.6p 2347 3545

FREE 900 928 911 71 5,4p 1088 1889
FREE 1200 1201 1177 75 4.7p 1390 2401
FREE 1500 1494 1485 84 4.7p 1937 3027
FREE 2000 2024 1999 98 4.745p 3571 4126
FREE 2500 2432 2400 112 5.000p 4503 4952

REAR WING 303 298 293 44 6.5p 187 609
REAR WING 330 330 316.6 44.7 6.5p 208.8 662

Current technical specifications! All rights reserved to improve / modify / change any product at anytime.
